Directional Drills
MD50-AT
MD50-AT LS Trenchless No-dig HDD Horizontal Directional Drill
Equipment Underground & Road Pipeline Utility
&

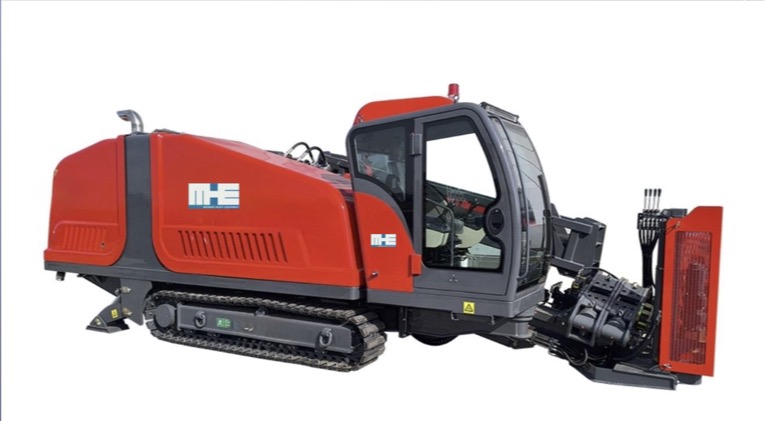

MD50-AT All-Terrain Horizontal Directional Drilling Unit Crawler-Mounted HDD Rig for Rough Field Operations
KEY DRILL SPECIFICATIONS
Key Features of the MD50-AT Drill
1.
Primary assembly components from top-tier international manufacturers of hydraulic components to guarentee product dependability.
2.
Engineered for superior performance across any terrain, this machine delivers exceptional stability and mobility for any job.
3.
Designed with an integrated mud pump and jet nozzle to ensure efficient operation of the mud system and safeguard equipment integrity.
4.
Configured for full opening to facilitate flexible operation and routine maintenance.
5.
Optional equipment enhances functionality and versatility:
(a) hydraulic anchor,
(b) rod-loading box,
(c) automatic grease injector.
6.
Rotation and thrust/pullback use a manualhandle, which simplifies and speeds up operation.
7.
Designed to match quality with an exquisite appearance, streamlined shape, and Euro-American surface styling.
8.

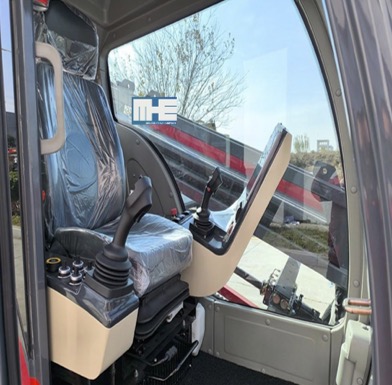

The cabin is spacious and equipped with modern technology for smooth operations and mauver.
8.
Rotating operator seat provides superior convenience and visibility.
Specifications
Weight
46,297 lbs
Dimensions (LxWxH)
354x99x103 in
Max. Thrust & Pullback Force
100,000 lbs
Max. Thrust & Pullback Speed
213 ft/min
Max Torque
14000 ft-lb
Max Rotation Speed
192 rpm
Engine Power
260 hp
Max. Flow of Mud Pump
175 gal/min
Walking Speed
3.1 mph
Max. Mud Pump Pressure
1160 psi
Entry Angle
21°
Max. Climbing Gradient
18°
Drill Rod Size
3.5x181 in
Crane
4.5 t
Suggest Reaming Diameter
≤ ø47.24 in
Suggest Crossing Length
≤2000 ft

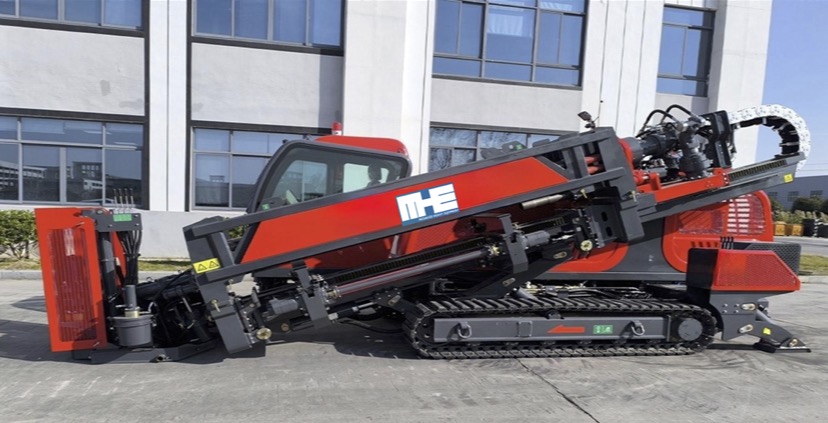

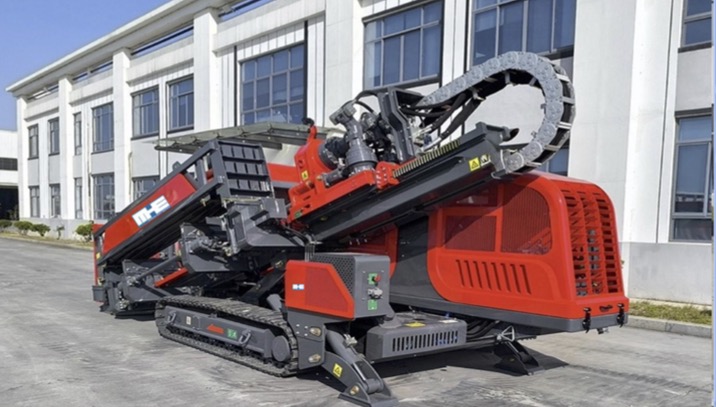

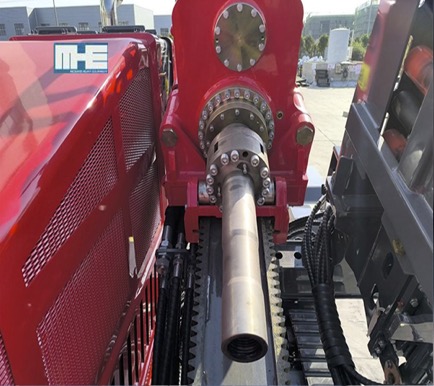

Gallery
MHE DIRECTIONAL DRILL MD50-AT
