Directional Drills
MD35-70
LS TRENCHLESS NO-DIG HDD HORIZONTAL DIRECTIONAL DRILL EQUIPMENT UNDERGROUND & ROAD PIPELINE UTILITY
KEY FEATURES
1.
Rotation powered by American-made Danfoss motor, featuring a large torque, two gears for speed adjustment, and consistent performance.Thrust & pullback uses a three-gear speed regulator and an American Danfoss motor. Compared to other manufacturers in the same industry, the construction speed is significantly faster. Drilling construction is increased by the driving head's strethened power.
2.
military-grade hydraulic grar pump installed,Wire-controlled steel track makes it easy to load, unload and transport.
3.
Engineered for low-failure operation, this unit offers streamlined maintenance and optimized electrical design.
4.
Equipped with a hydraulic gear pump manufactured with military technology. Steel track walks by wire-control for convenient loading, unloading & transferring.
5.
The track system features rubber-plated steel tracks capable of supporting heavy loads and enabling movement across diverse terrains.
6.
Rotation and thrust/pullback use a multipurpose handle that is easy to use and regulared by a pilot valve.
7.

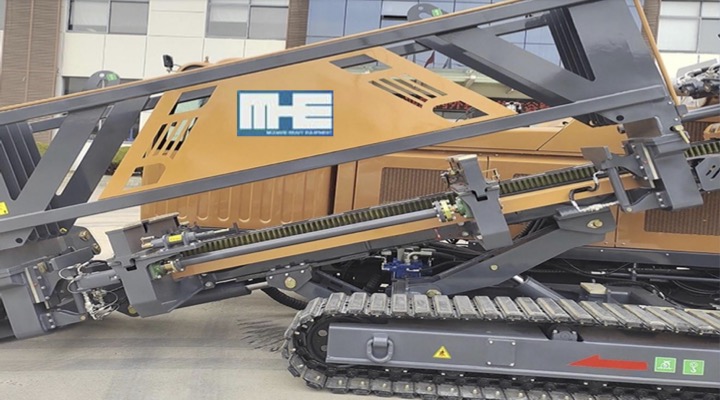

The Drill's innovative four-bar linkage luffing structure is used for the main girder to ensure both the machine's reliable performance and large entry angle.
8.

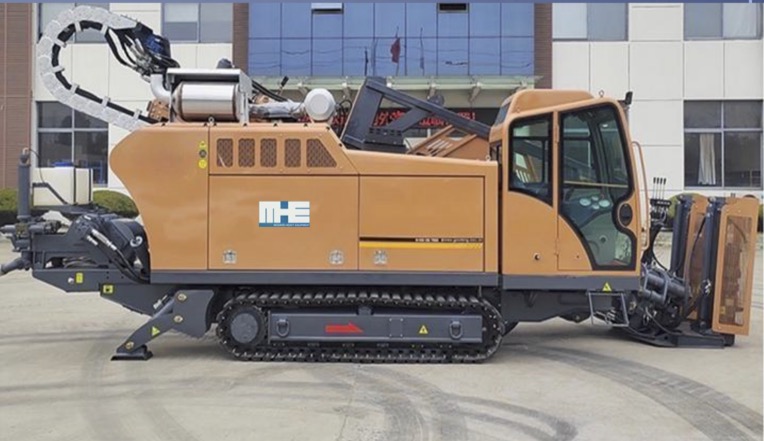

The cabin is well equipped with an open-air operating table and excellent working view.
Specifications
Weight
21605/25133 lbs
Dimensions (LxWxH)
24X7.3X8.3 in
Max. Thrust & Pullback Speed
110 ft/min
Max. Thrust & Pullback Force
75,000/140,000
Max Torque
9800 lb-ft
Max Rotation Speed
135 rpm
Engine Power
200 hp
Max. Flow of Mud Pump
100 gal/min
Walking Speed
1.6/2.5 mph
Max. Mud Pump Pressure
1160 psi
Entry Angle
13-23°
Max. Climbing Gradient
18°
Drill Rod Size
ø2.87-ø2.99 x 118.11 in
Drill Pipe Box Capacity
36 pcs(4x9)
Suggest Reaming Diameter
≤ ø39.37 in
Suggest Crossing Length
≤1600 ft
Gallery

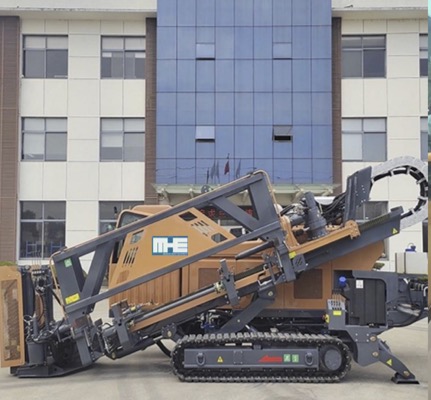

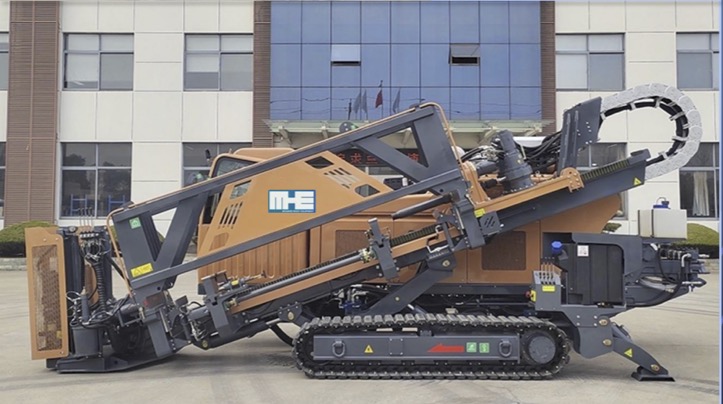

MHE DIRECTIONAL DRILL MD25-70
